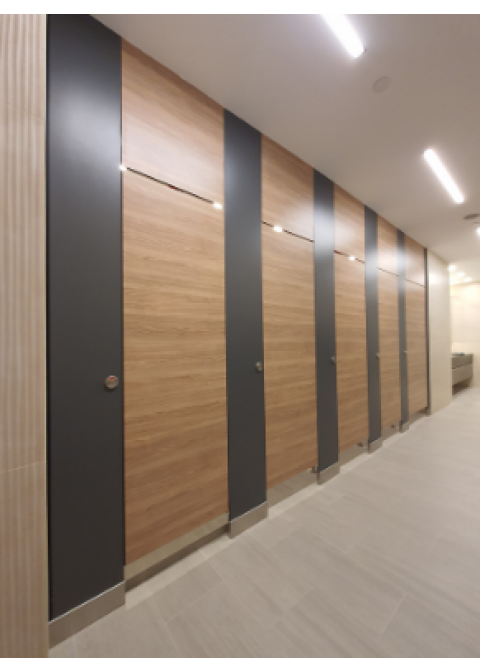

Herculis Floor to Ceiling Mounted

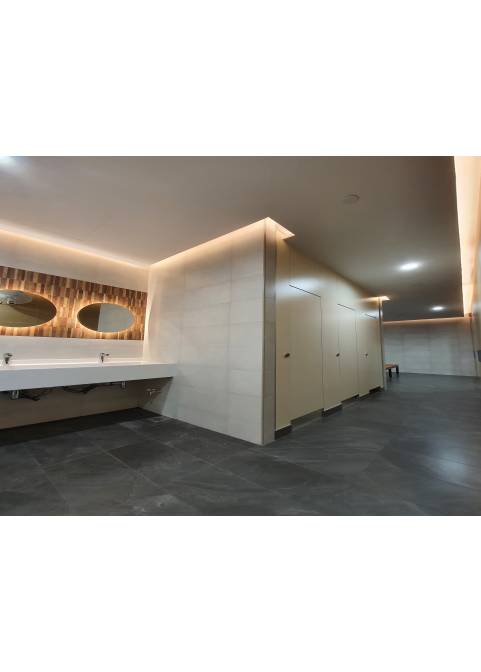

SephBuild Galaxy Herculis Floor Mounted Cubicle Series
Robust Cubicle System that is highly resistant against moisture, chemical corrosion, flame
and vandalism. Offering flexible design with ease of cleaning and environmental friendly that makes
it be widely suitable for any location.
Doors
Made up of 12mm or 19mm thick compact laminate and
completed with heavy duty gravity self-closing
hinges. Edges will be chamfered without the use
of any metal trimmings. Recommended door
width of 600mm for normal door and 820mm for
ambulant door. Overall Door height of 1940mm,
which are calculated from FFL to top of the door
(Inclusive of 110mm gap from FFL).
Pilasters
All Pilasters are made up of 12mm or 19mm thick compact
laminate secured with heavy duty L-angle plate and
concealed by Stainless Steel Shoe Box to FFL for
maximum rigidity and support. Minimum pilaster
width recommended at 300mm for centre pilaster
and 150mm for end pilaster. Overall Pilaster height
of 1940mm, which are calculated from FFL to top of
the pilaster.
Dividing Partitions
Dividing partitions shall be made up of 12mm thick
compact laminate. Secure to both end wall and
pilaster with extruded aluminium u-channel for
stability. Maximum divider width recommended at
1830mm. Overall divider height at 1940mm,
calculated from FFL to top of the divider (Inclusive of
110mm gap from FFL).
Accessories (Optional of Stainless Steel or Nylon Black/Grey/White)
Each cubicle partition comes with the following Stainless Steel accessories:
- Stainless Steel thumbturn lockset (With emergency coin release).
- Heavy duty self closing hinges (Adjustable at fully Close/Open or partially Close/Open position).
- Stainless Steel coat hook w/ rubber stopper
- Stainless Steel 42mm door knob
Fittings
Floor mounted cubicles are secured and concealed by
heavy duty L-angle plate and Stainless Steel Shoe Box
to FFL. End panels are secure to wall with heavy
duty extruded aluminium U-channels. Stainless steel
U-channel and powdering options are available upon
request.
